100-277V Smart Junction Box

100-277V Smart Junction Box

$179.00 USD
$179.00 USD
Sale Sold out

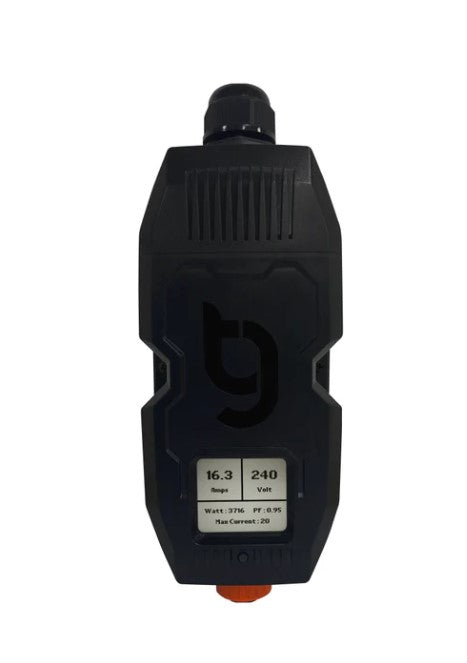

The ThinkGrow Smart Junction Box is an electronic circuit breaker and energy meter that is connected in line with each "string" of LEDs to monitor and protect the circuit from power overload. If the circuit protector detects unusual high amperage, the power to the LEDs will be turned off to prevent damage to the LEDs and the Daisy Chain Power Cord System.

FEATURES

  • Overcurrent protection
  • Power Surge Protection
  • Power Consumption Data Collection
  • On-site monitoring
  • Wireless Power-data Logging (with Hydro-X Pro)

PACKAGE CONTENTS

  • Smart Junction Box (OPA-1) x 1
  • Alternate Waterproof Cable Gland Seal (for 12/3 and 14/3 cable) x 1



SPECIFICATIONS

Input power :

Rated voltage :

Rated current :

Shut-off Point Range :

Overcurrent protection point :

Sensitivity to protection :

Voltage accuracy :

Current accuracy :

Power accuracy :

PF accuracy :

Operating temperature:

Working Humidity :

Product dimensions :

G.W. per pack :

Certifications :

FCCID :

00~277VAC, 50/60 Hz

100~277V

30A

15A/ 20A/ 30A

+120%

Response within 0.5s

ﾱ2% readings/ ﾱ1% shut-off point

ﾱ2% readings/ ﾱ1% shut-off point

ﾱ5% readings/ ﾱ1% shut-off point

ﾱ10%

32~104 ﾰF

5~95%RH

104.05 x 266.16 x 70.77 (mm)

940 g

ETL/FCC

2A3 3F-OPA-1
