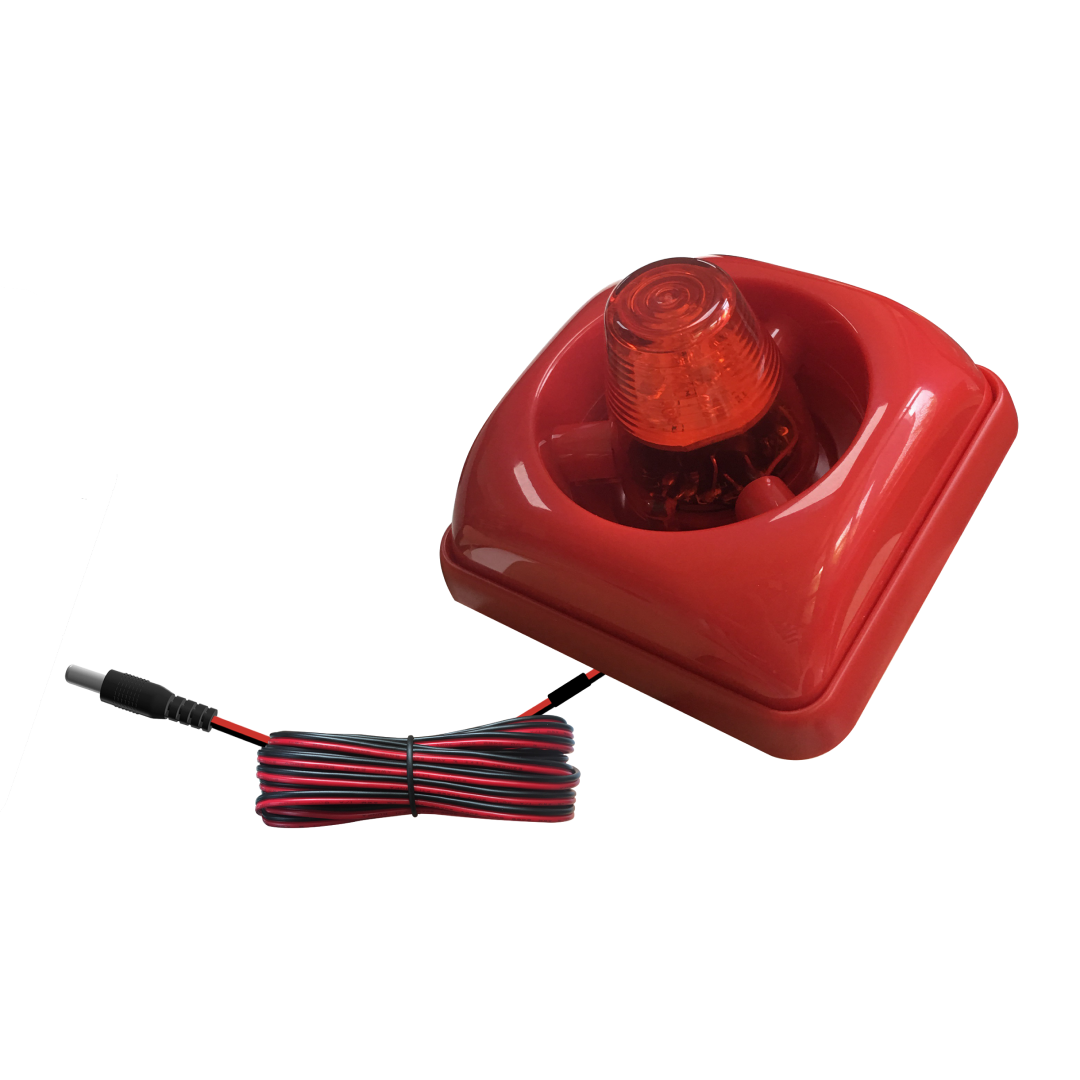

AS-5 Alarm Station

The AS-5 Alarm Station is an audible-visual alarm that can be mounted inside or outside the grow rooms or grow facilities. It supports both audible and visible alarms to alert users in the event when the selected parameter goes above/below the preset levels.

The AS-5 can be powered by the DSD-1 Dry Contact Station and connected to the CDA-1. When connected with the CDA-1, the AS-5 can be linked to either AL-1 or AL-2 CO2 sensors channel, or linked to both sensors channels for complete redundancy.

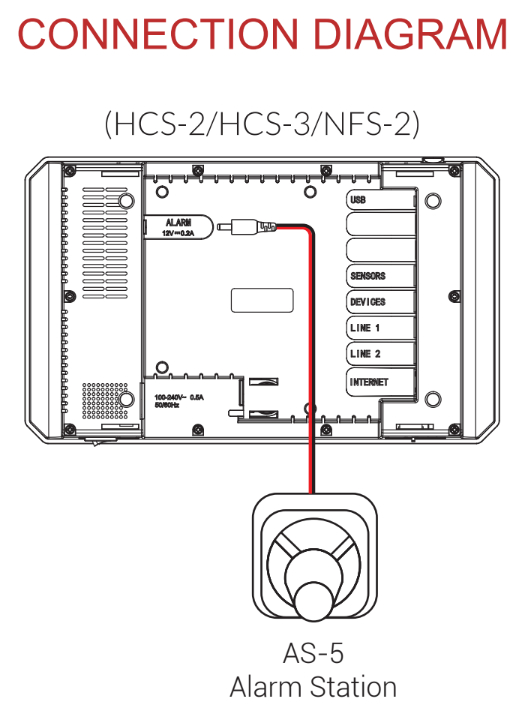

The AS-5 can also directly connect to the Hydro-X Pro (HCS-2), Hydro-X Plus (HCS-3)

Features

• Plug & Play

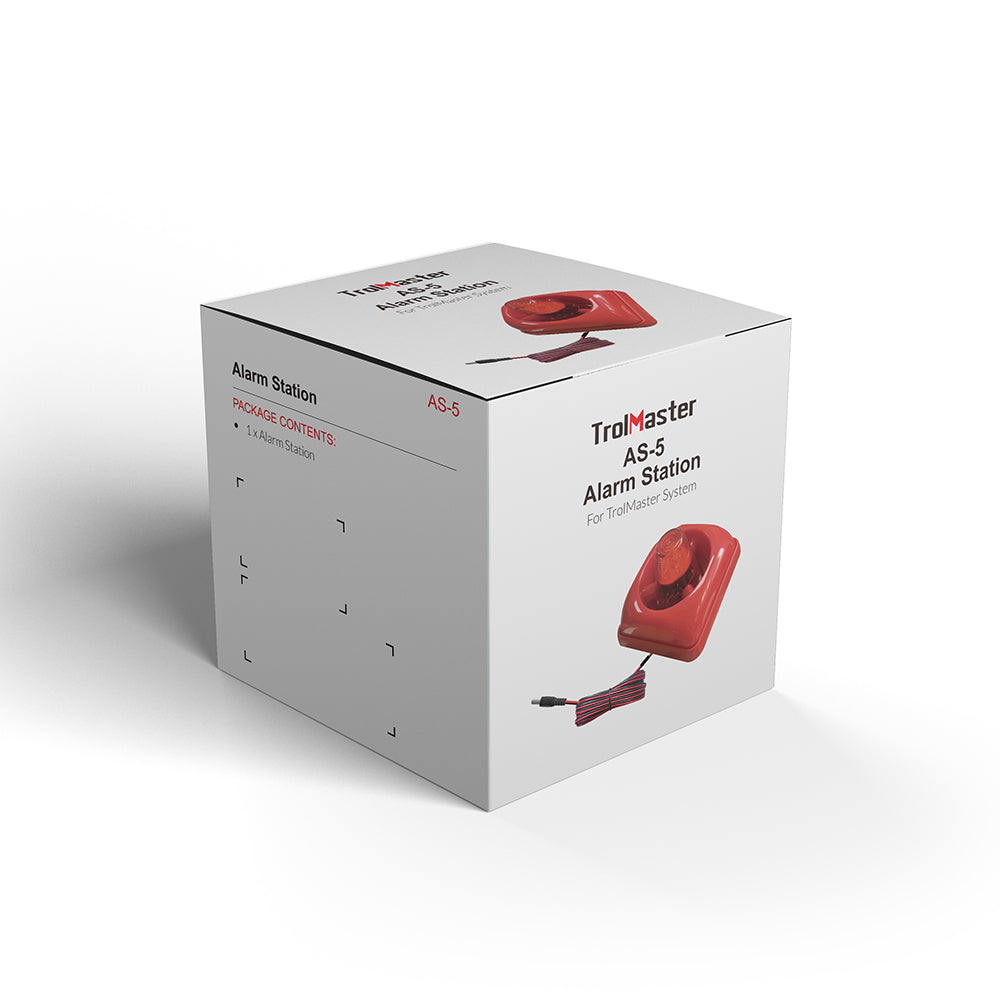

Package Content

• 1 x Alarm

Specification

• Connector:                     DC 5.5*2.1 Male
• Rated Voltage:                DC12V/24V
• Rated Current:                60mA
• Strobe:                           Red/ 120 FPM
• Siren:                             85dB
• Working Environments:    Temperature 32-122°F, Humidity<=90%
• Package Dimensions:        82mm(L) x 82mm(W) x 51mm(H)
