Aqua-X Control Board 24V, 6 individual 24V controlled output for solenoid valve control

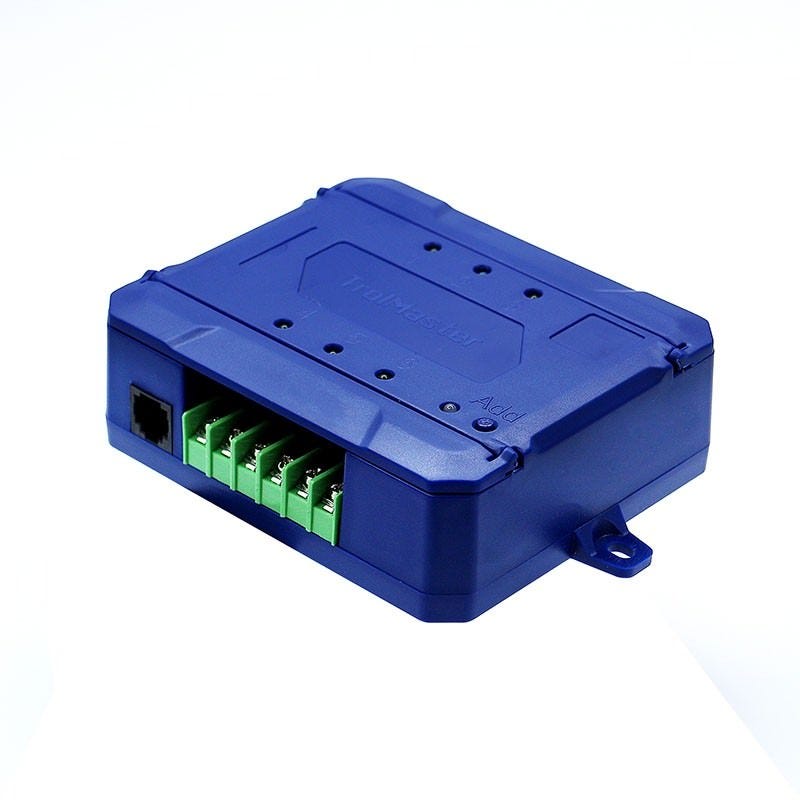

The TrolMaster Aqua-X 24v (OA6-24) control board is designed to control multiple 24vac solenoid valves. It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump. Features:

• LED Power Indicator
• Addressing Button
• 6 Individually-Controlled 24V Outputs
• Individual LED Indicator for Each Output
• Double RJ12 Cable Sockets for Daisy Chain Connectivity

Specifications: Input Voltage: 110-240 VAC Max Input Current: 0.2A Max Output Voltage/Current: 24VAC/0.2A per output Working Environments: Temperature 0°- 50°C, Humidity=90% Packaging Dimensions: 275mm x 164mm x 40mm
