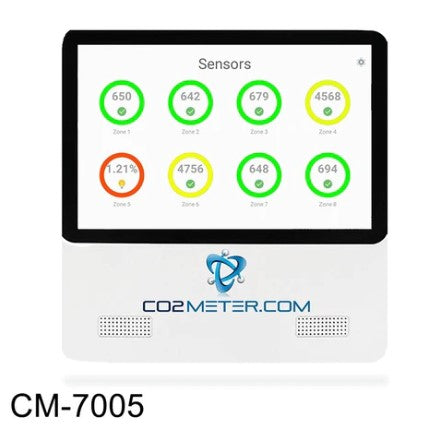

CO2 Multi Sensor System - 1 Main Tablet CM-7005
CO2 Multi Sensor System - 1 Main Tablet CM-7005
Couldn't load pickup availability
The CO2 Multi-Sensor Safety System is designed to monitor carbon dioxide gas levels and detect leaks of higher concentrations using CO2 gas detection alarm systems. This device can monitor carbon dioxide levels and detect leaks protecting facilities and offices from over exposure.
Our safety system operates by using one central display unit and can manage up to twelve (12) individual sensors at once.
Because high concentrations of carbon dioxide in confined spaces are dangerous and may lead to negative health problems - the CM-7000 system ensures that you and your employees are safe and protected. Should an incident occur, you can rely on the CM-7000's ability to trigger an exhaust fan or send an immediate alarm to the fire department or monitoring company.
This system features both audible and visual alarms as well as the ability to configure sensors independently including the 3 relays that are triggered at 5,000 TWA, 5000 ppm, 1.5% CO2, and 3% to meet OSHA/NIOSH standards including local fire codes
Users may configure modules (sensor, horn/strobe, and key switch) from the main CM-7000 tablet either in direct connection or through daisy-chaining modules together.
Features
- 8" Touch Screen Display Panel
- 12+ easily addressable CO2 Sensors (contact us, for configuration details)
- 100% Clean, Modern Appearance - All cables can be hidden
- Customer Configurable Alarm and Notification Settings
- Mute Push Button to temporarily mute audible alarms
- Integrated Speaker and USB port
- Meets NFPA, IFC, and NBIC Requirements
- Meets OSHA and NIOSH TWA Standards
- Meets all local municipality inspection codes and requirements
Applications
- Restaurant and Food
- Breweries and Wineries
- Beverage Dispensing
- Medical and Scientific
- Agriculture
- Safety
Specifications
- Measurement Range: 0-5% (0-50,000 ppm)
- CO2 Measurement: NDIR (Non-Dispersive Infrared
- Alarms: 5,000 TWA, 5,000 ppm, 1.5%, and 3% (default)
- Custom Alarms: 1%, 2%, 2.5%, 3.5%, 4%
- Measurement interval: 2 seconds (0.5Hz)
- Operating Temperature: 32-122°F (0-50°C)
- Calibration: Zero with Nitrogen or Factory Calibration
- Connections: Input/ Output/ Strobe - CAT5 8 pin connector
- Sensor Life Expectancy: > 15 years
Electrical
- Wall Power Plug: 110-220 VAC 50/60 Hz to 12 VDC Power Adapter
- Power Input: 48-58 VDC
- 48-58VDC hard-wired power option
- Power Consumption: 30W
- Can be connected to a UPS for Battery Backup
- Horn Strobe: 90-120dB 3KHz, 110 cD
- Max distance any sensor or horn/strobe can be from the tablet is 250 ft.
Warranty
- 1 year - See CO2Meter Terms and Conditions
