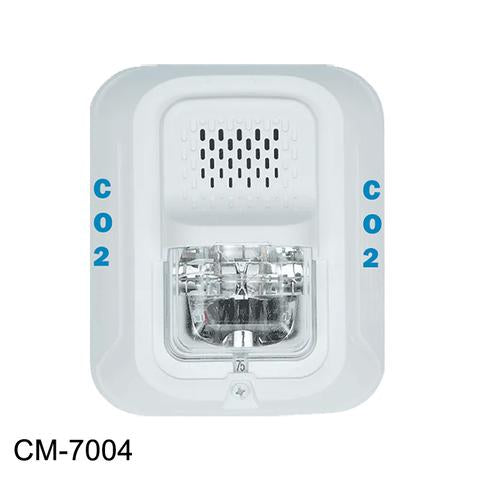

CO2 Multi Sensor System - Horn Strobe CM-7004

CO2 Multi Sensor System - Horn Strobe CM-7004

Regular price $159.00 USD
Regular price Sale price $159.00 USD
Sale Sold out
CO2 Multi Sensor System - Horn Strobe CM-7004

Product Overview:


The CO2 Multi-Sensor System is designed to detect Carbon Dioxide (CO2) levels in the ambient air to protect employees, workers, and establishments.

CO2 monitors are required in most jurisdictions by code and regulation

The CM-7004 features both audible and visual alarms as well as the ability to configure sensors independently including the 3 relays that are triggered at 5,000 TWA, 5000 ppm, 1.5% CO2, and 3% to meet OSHA/NIOSH standards including local fire codes.

Users may configure modules (sensor, horn/strobe, and key switch) from any tablet either in direct connection or through daisy-chaining modules together. You may not exceed 12 horn/strobe modules on any string.

With the CM-7004, you can ensure that you and your employees are safe and protected, and should an incident occur rely on the CM-7000's ability to trigger an exhaust fan or send an immediate alarm to the fire department or monitoring company.

Please note: High concentrations of carbon dioxide in confined spaces are dangerous and may lead to negative health problems ranging from fatigue, asphyxiation, or even fatality, if not properly monitored.

Features:



  • 8" Touch Screen Display Panel

  • 12 easily addressable CO2 Sensors

  • 100% Clean, Modern Appearance - All cables can be hidden

  • Customer Configurable Alarm and Notification Settings

  • Mute Push Button to temporarily mute audible alarms

  • Integrated Speaker and USB port

  • Meets NFPA, IFC, and NBIC Requirements

  • Meets OSHA and NIOSH TWA Standards

  • Meets all local municipality inspection codes and requirements


Models:


CM-7004- Horn Strobe Add On

Applications:



  • Restaurant and Food

  • Breweries and Wineries

  • Beverage Dispensing

  • Medical and Scientific

  • Agriculture

  • Safety


Specifications:



  • Measurement Range: 0-5% (0-50,000 ppm)

  • CO2 Measurement: NDIR (Non-Dispersive Infrared

  • Alarms: 5,000 TWA, 5,000 ppm, 1.5%, and 3% (default)

  • Custom Alarms: 1%, 2%, 2.5%, 3.5%, 4%

  • Measurement interval: 2 seconds (0.5Hz)

  • Operating Temperature: 32-122°F (0-50°C)

  • Calibration: Zero with Nitrogen or Factory Calibration

  • Connections: Input/ Output/ Strobe - CAT5 8 pin connector

  • Sensor Life Expectancy: > 15 years


Electrical:



  • Power Supply: 110-220 VAC 50/60 Hz to 12 VDC Power Adapter

  • Power Input: 4.5-5.25 VDC

  • 24VDC hard-wired power option

  • Power Consumption: 300mA peak, 30mA average

  • Can be connected to a UPS for Battery Backup

  • Horn Strobe: 90-120dB 3KHz, 110 cD

  • Max distance any sensor or horn/strobe can be from the tablet is 250 ft.


Warranty:



  • 1 year - See CO2Meter Terms and Conditions.
