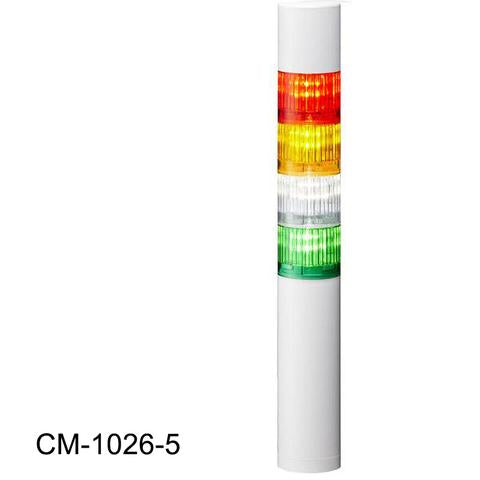

CO2 Storage Safety Strobe Tower CM-1026-5

Product Overview:

This strobe tower provides a bright, flashing indicator and alarm sound for any of our CO2 or Oxygen Storage Safety Alarms. It clearly indicates the alarm level to anyone in the room. The tower strobe colored lights are used as follows:

• Green - Normal air
• Clear - Alarm level 1 / Relay 1 triggered.
• Amber - Alarm level 2 / Relay 2 triggered.
• Red - Alarm level 3 / Relay 3 triggered.

The strobe tower is controlled by the relay outputs on the RAD sensor unit (SEU).

Models:

CM-1026-5 - 16" CO2 Storage Safety Strobe Tower with 100-240AC electrical, requires user supplied power plug.

• Requires 110VAC to 240VAC power source and connections.
• May require additional wire to remote mount the strobe tower.
• Uses "Alarm/Relay" connections on the back of the RAD-0102-6 to activate strobes/horn.
• See attached wiring diagram: Connecting the CM-1026-5 Strobe Tower

Specifications:

• 6 Foot (2m) Cable included
• Length: CM-1026-5 16" long and CM-1026-6 11.5" long
• Diameter: each 1.5"
• Alarms set to match 3 relays on RAD units (user configurable)
• Mounting bracket included

Electrical:

• CM-1026-5 - 100-240AC electrical included, requires power supply
• CM-1026-6 - requires a 24VDC power supply

Warranty:

• 1 year - See CO2Meter Terms and Conditions.
