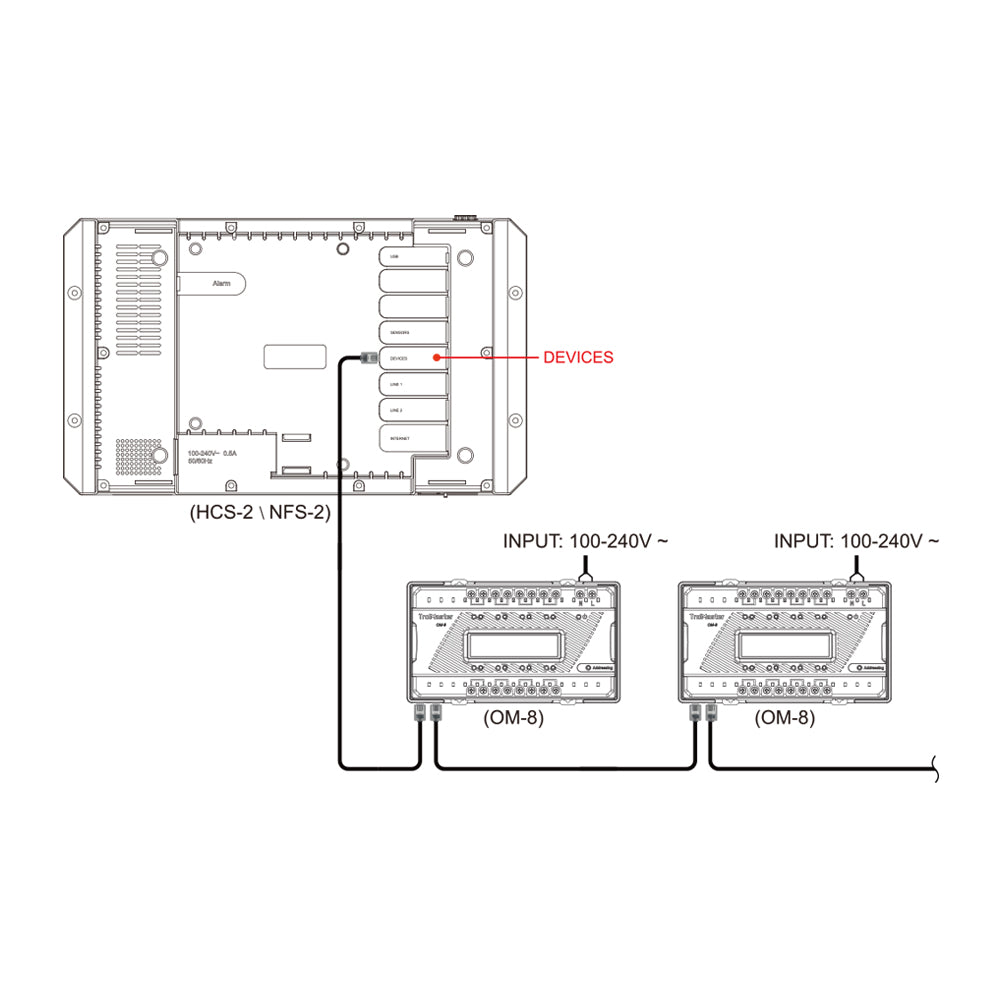

The OM-8 dry contact board allows the main controller to control up to 8 individual outputs on it. It is specially designed for the Hydro-X Pro and Aqua-X Pro system. It has 8 individual electrical contacts, and allows up to 12 Amp current through each contact. *The OM-8 should be mounted inside an electric control cabinet, and connected to a power supply between 100-240 VAC.
*When used with the Aqua-X Pro system, OM-8 can activate pumps/solenoids at a higher amperage of 12 A.
Features
LCD Display, easy to set up and use
Easy installation
Overload protection on each of the 8 outputs @ 12 amps
Each contact can be forced open or closed for a duration of 30 minutes
Package Content
1x OM-8
1x 16 ft RJ12 Cable
Specification
Max Relay Amperage: 12A Per Output
Output Working Environments: Temperature 32-104°F, Humidity≤90%
