Dry Contact Station Single Pack with cable set

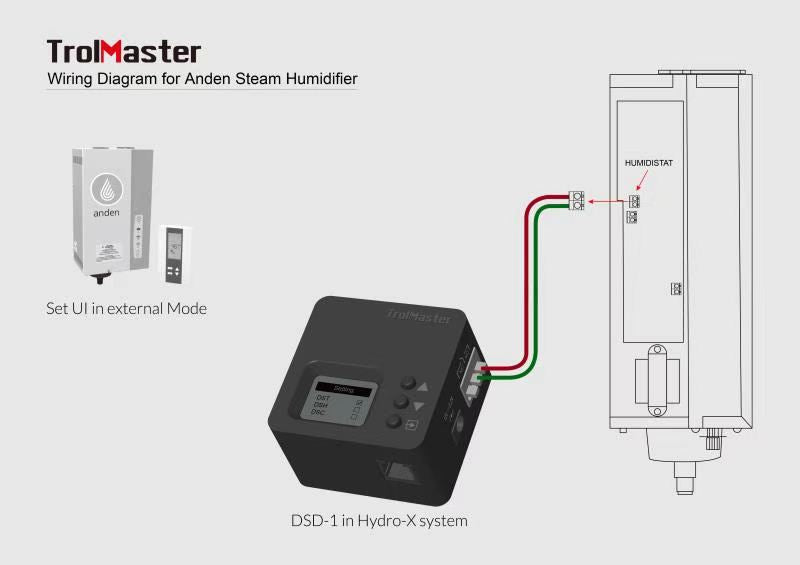

The Trolmaster DSD-1 Dry-contact module provides a simple and flexible solution to who want to connect & control devices to the Hydro-X using a “dry-contact” or relay to activate the device. Some equipment requires either normally open or normally closed contact closure in order to activate the equipment. The DSD-1 is the product that you need to control those types of devices.

The DSD-1 can be configured to work as the other Trolmaster power modules work. The DSD-1 connects into the “devices” line on the Hydro-X and can be set to control an almost infinite number and types of devices such as:

Lighting contactors

Light Deprivation curtains

Pump contactors

Temperature devices

Humidity devices

CO2 devices

1 x Dry Contact Station DSD-1

1 x 16ft RJ12 Cable

1 x 4ft RJ12 Cable

1 x RJ12 T-Splitter

Input Voltage:                           100~240VAC, 50/60Hz

Output Current:                         10A

Output Voltage:                         100~240VAC, 50/60Hz

Working Environment:               Temperature 32-122°F, Humidity=90%

Packaging Dimensions:              85mm x 80mm x 90mm
