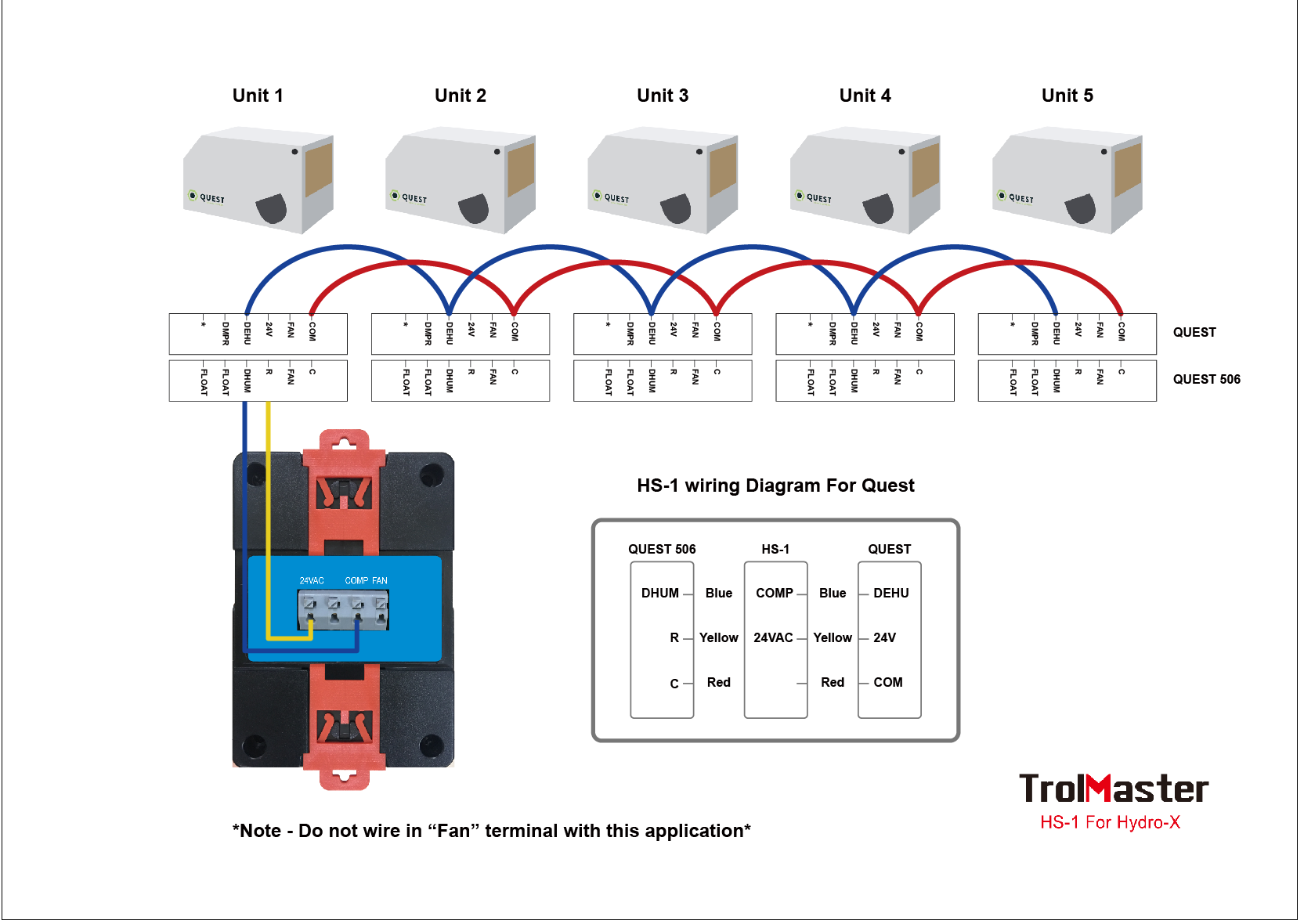

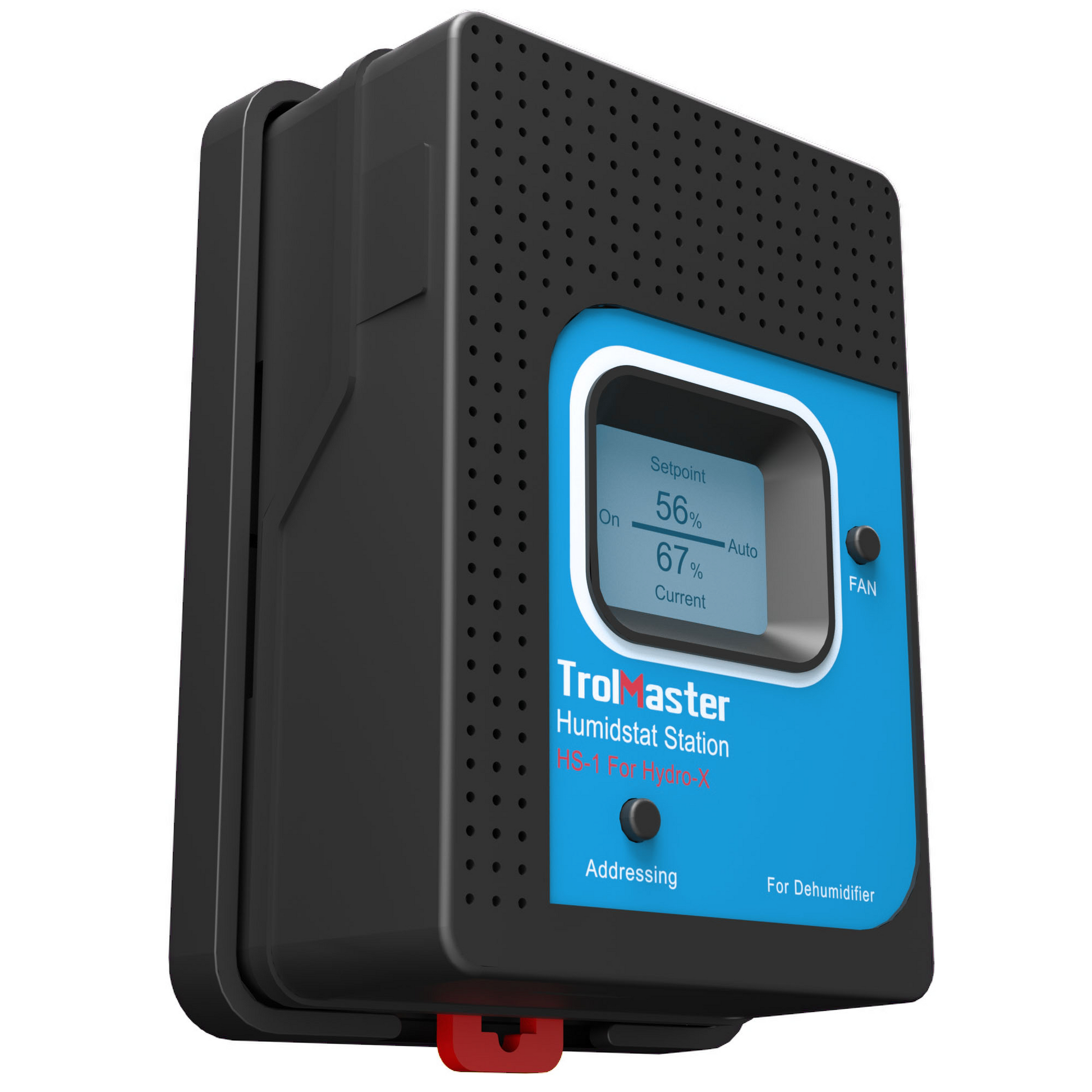

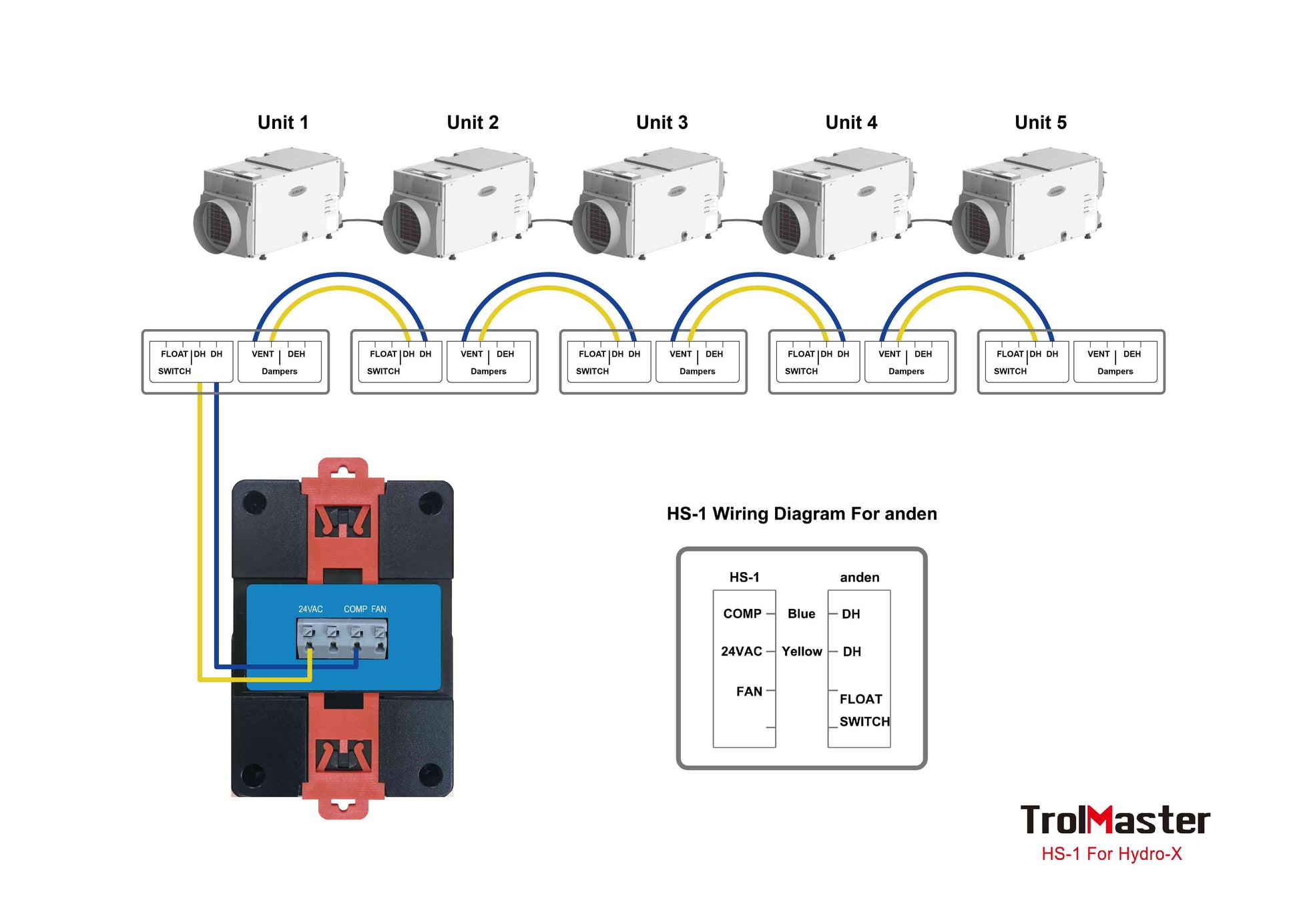

The HS-1 from TrolMaster is used to control commercial dehumidifiers. Most larger / commercial dehumidifiers have a “low-volt” control option so the dehumidifier can be controlled by an external humidistat. The HS-1 works and is wired exactly like an external humidistat. The HS-1 is the best way to control your dehumidifiers by eliminating the need to control the high-amperage / inrush current associated with dehumidifiers.
Features
LCD Display, Easy Operation

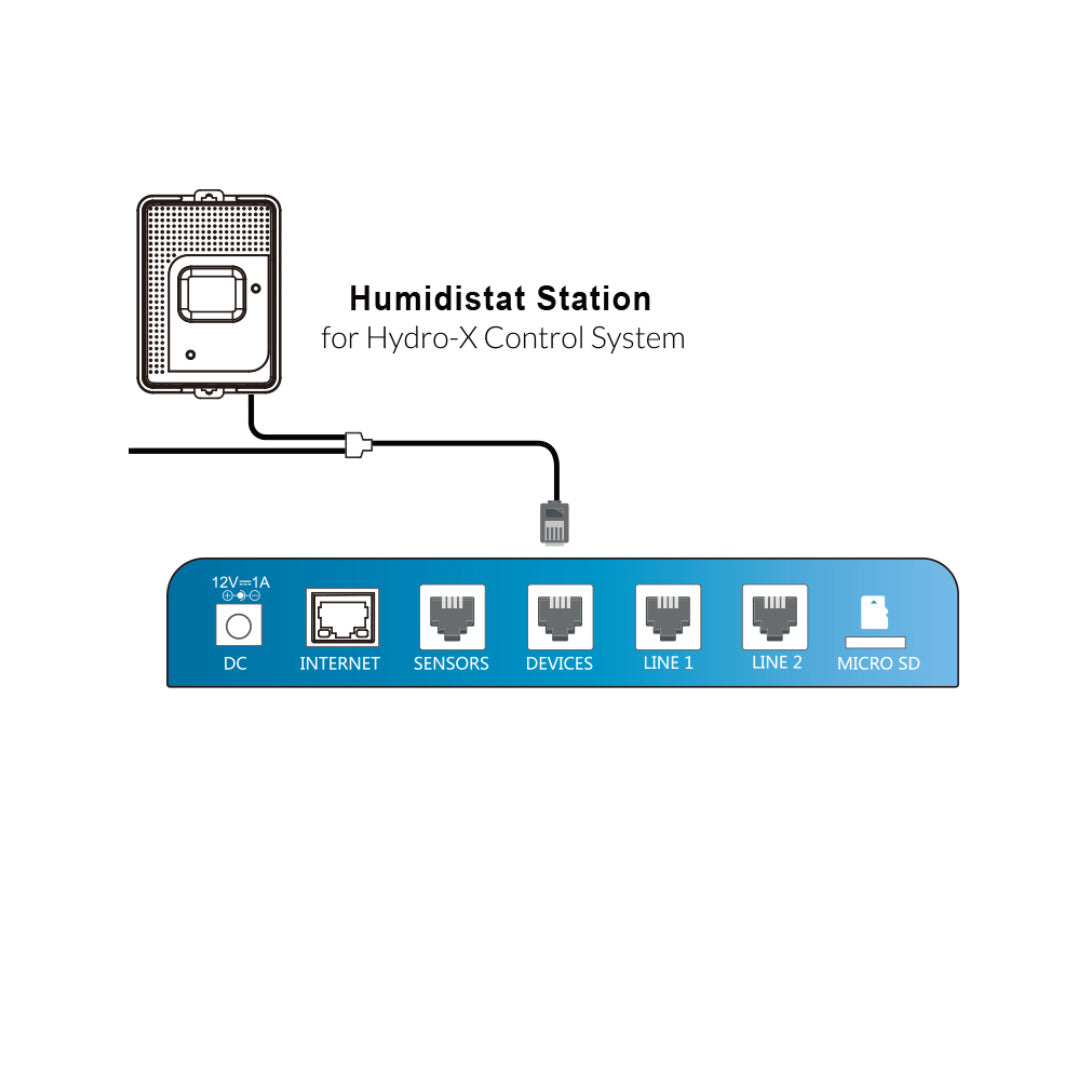

Seamless Connection with Hydro-X
Micro-SD for Firmware Upgrade
Address Assignment
Plug & Play

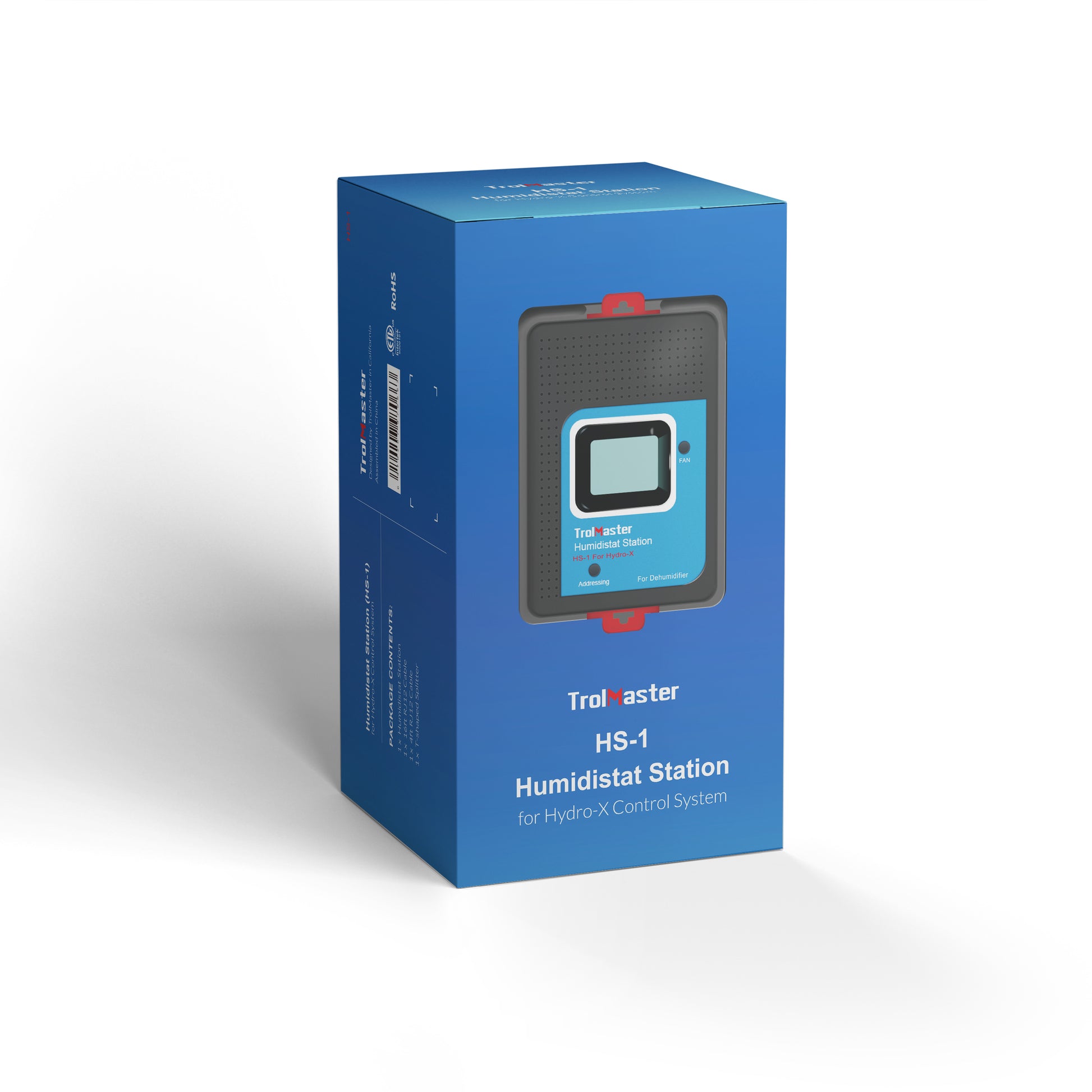

Package Content
1 x Humidistat Station (HS-1)
1 x 16ft RJ12 Cable
1 x 4ft RJ12 Cable
1 x RJ12 T-Splitter
Specification
Output Voltage: 24V
Maximum Current: 1A
Working Environment: Temperature 32-122°F, Humidity=90%
Packaging Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
