Hydro-X Program Device Station Timer Program Control Relay Single Pack with cable set

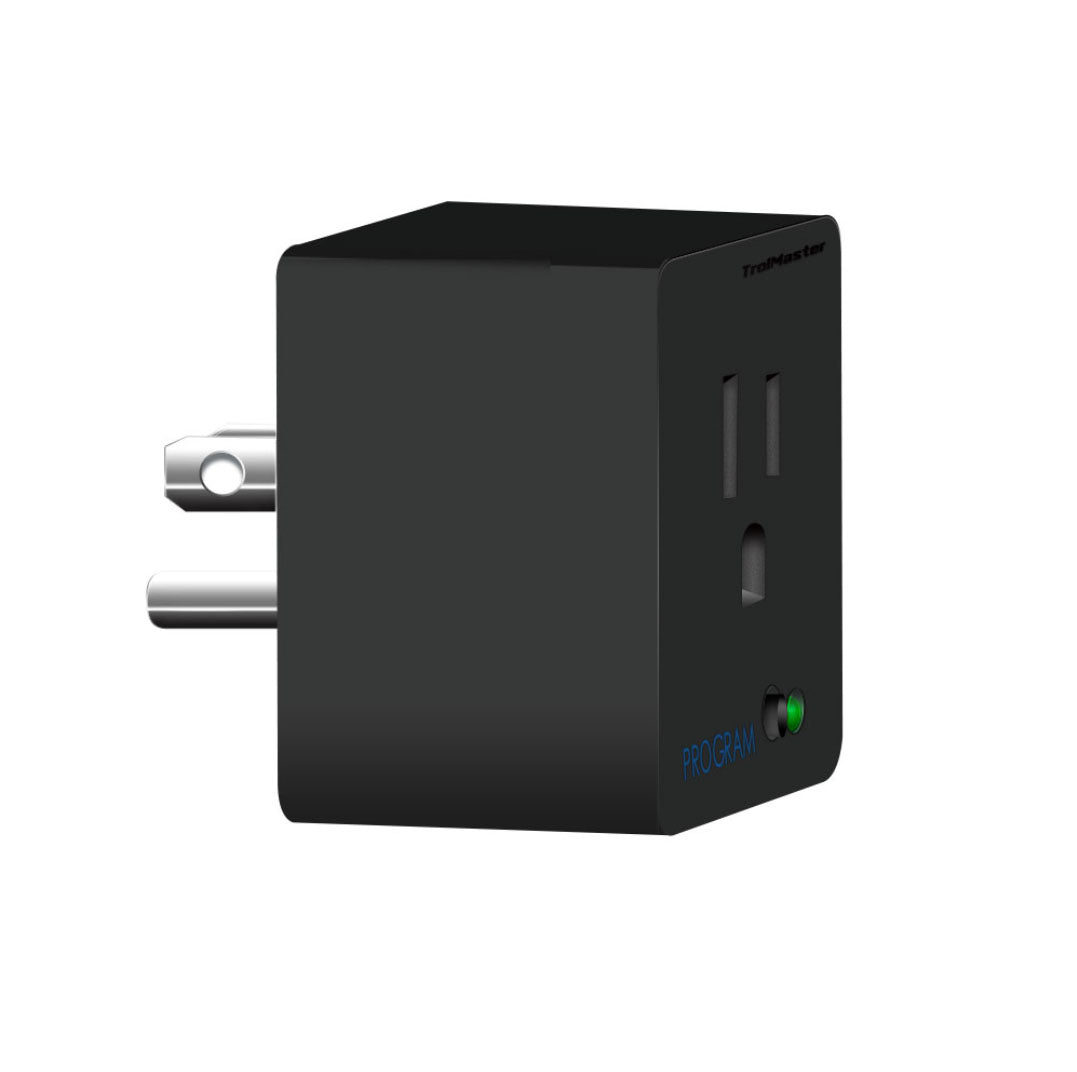

The TrolMaster DSP-1 program device module (timer module) works like a multi-function timer. The DSP-1 allows the user to easily connect any device that needs to be controlled by TIME to the Hydro-x.  The DSP-1 allows control of any device under the world voltage standard (100-240 VAC, 50/60 Hz), up to 10-amps.

Features

•  LED Power Indicator
•  3-Prong Attaching Plug
• RJ12 Cable Socket
• Addressing
• Plug & Play

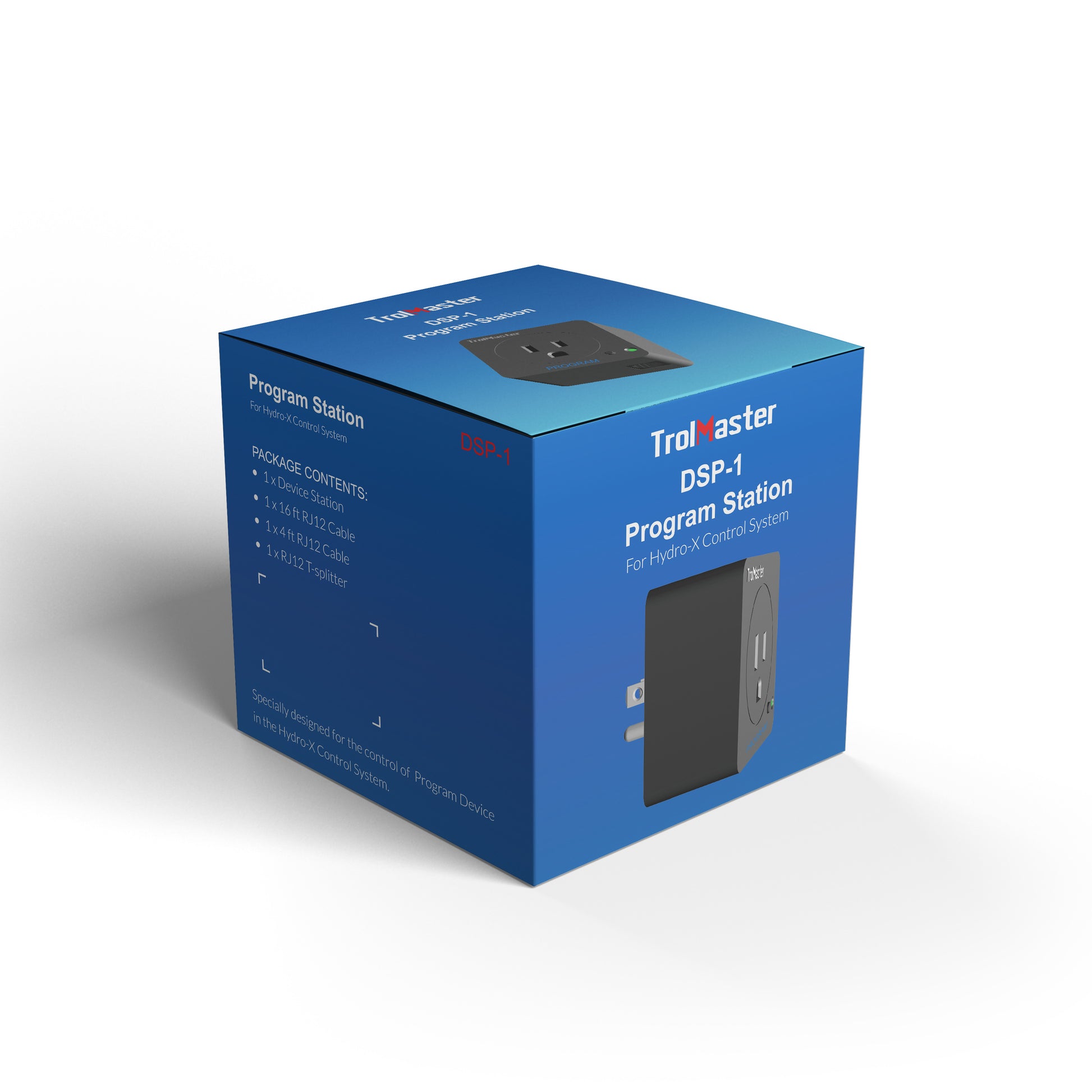

Package Content

• 1 x Device Station
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter

Specification

• Input Voltage:                                      100~240 VAC, 50/60Hz
• Output Current:                                   10A
• Output Voltage:                                   100~240 VAC, 50/60Hz
• Working Environments:                      Temperature 32-122°F, Humidity=90%
• Package Dimensions:                        85mm(L) x 80mm(W) x 90mm(H)
• G.W. per pack:                                    0.34kgs
