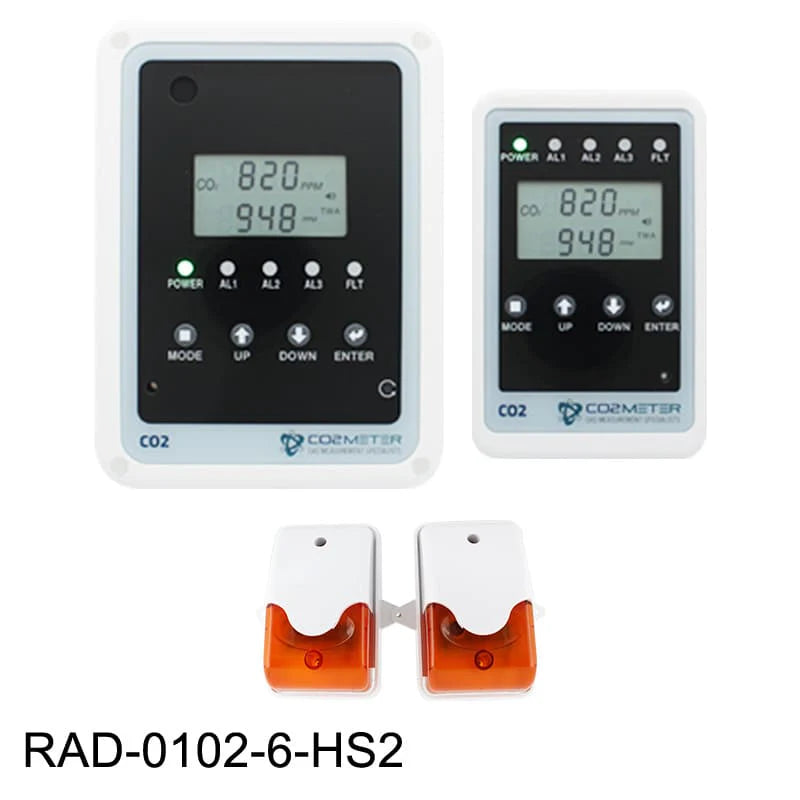

Remote Carbon Dioxide CO2 Storage Safety 3 Alarm
Remote Carbon Dioxide CO2 Storage Safety 3 Alarm
Couldn't load pickup availability
CO2 alarms are critical in restaurants, breweries, wineries, beverage dispensing areas, dry ice storage, laboratories, cultivation facilities, or anywhere more than 100 lbs. of CO2 is stored or produced.
Please note with the purchase of any Remote CO2 Storage Safety 3 Alarm, a surge protector is required for safeguard and longevity of the monitor.
Features
- 88dB audible and visual alarms
- 3 relays automatically control fans to ventilate spaces (default: 5,000ppm TWA, 5,000ppm and 3% CO2)
- Programmed to meet fire code compliance for all states
- Meets NFPA, IFC, and NBIC requirements
- Meets OSHA and NIOSH TWA standards
- Meets CGA G-6 Carbon Dioxide Monitoring and Supply standards
- Meets EH40, AS5034, and UK Health and Safety Act
- More flexible - extend remote up to 300 feet from the main unit
- All cables are disconnect-able - no hardwiring
- Comes with required signage in English and Spanish
- 4-20 mA output to allow for remote display of values
- UL listed for compliance
The CO2 Storage Safety Alarm is easy to install and use. Watch the installation video. Simply mount both units on the wall (all cables and hardware included), plug the monitoring unit into a standard wall outlet, and the alarms are ready to protect your customers and employees. To hardwire the alarm, view the instructions here.
Specifications
- Measurement Range: 0-5% (50,000ppm) CO2 Sensor
- Alarms: 5,000 ppm TWA, 5,000 CO2, 3% CO2 (configurable)
- Alarm Response Time: < 60 seconds
- Operating Temperature: 0-50°C (32-122°F)
- Calibration: Manual with test gas or factory calibration
- Dimensions: SEU: 6.5 x 5.0 x 2.5 in. | RDU: 5.5 x 3.5 x 1.75 in.
- Sensor Life Expectancy: 15 years
Electrical
- Power Supply: 110-220VAC 50/60 Hz to 12VDC Power Adapter
- 24VDC hard-wired power option
- Power Consumption: 3 Watts
- 6VDC battery backup connections
- Relays: Peak Current < 2A @ 30VDC or 250VAC, SPDT
- Relay Color Coding:
- Red & White = Normally Open
- Blue & White = Normally Closed
Options
- RAD-0104 - Additional Remote Display (Supports up to 3 total)
- RAD-CDU-HS1 - Additional Centralized Display Unit (Supports 12 sensors)
-
RAD-PMU - Additional Power Monitor Unit (Alerts if Loss of Power)
- CM-HS2 - add-on kit includes 2 extension strobe lights and cables
Warranty
- 1 year - See CO2Meter Terms and Conditions.
Accessories
- RAD-CDU - Central Display Unit. A central display that consolidates visual and audible alerts from up to eight remote CO2 sensors for easy, centralized monitoring.
- RAD-PMU - Power Monitor Unit. A power monitor unit that indicates system status and alarms when the main CO2 safety device loses power
-
CM-1029 - Industrial Strobe Siren. The industrial strobe siren is designed to provide an additional flashing indicator of a potential gas leak in indoor areas that are using/storing compressed gases.
- RAD-0104 - Additional Remote Display.The Sensor display unit comes with one remote display that can be placed up to 300ft. away using CAT5 or greater Ethernet cable (28ft. included in the box). Purchase one or two additional remote displays, then daisy-chain them so long as the total run is less than 300 ft.
- SV-1029 Solenoid Safety Shut Off Valve 3/8 inch- designed to be utilized with any of our remote storage safety alarms, and can be directly wired to the SV-1029 24/DC safety shut-off valve.
