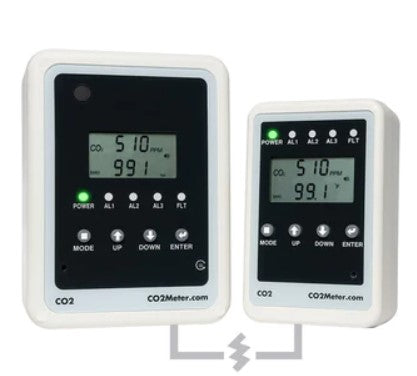

Remote CO2 Storage Safety 3 Alarm

The Remote Carbon Dioxide (CO2) Storage Safety Alarm is designed to protect customers and workers near stored carbon dioxide (CO2). The safety monitor measures carbon dioxide levels and detects leaks protecting facilities from over exposure to hazardous gas.

CO2 alarms are critical in restaurants, breweries, wineries, beverage dispensing areas, dry ice storage, laboratories, cultivation facilities, or anywhere more than 100 lbs. of compressed CO2 is stored or produced.

Specifications

• Measurement Range: 0-5% (50,000ppm) CO2 Sensor
• Alarms: 5,000 ppm TWA, 1.5% CO2, 3% CO2 (configurable)
• Alarm Response Time: < 60 seconds
• Operating Temperature: 0-50°C (32-122°F)
• Calibration: Manual with test gas or factory calibration
• Sensor Life Expectancy: 15 years

Electrical

• Power Supply: 110-220VAC 50/60 Hz to 12VDC Power Adapter
• 24VDC hard-wired power option (cable included)
• Power Consumption: 3 Watts
• 6VDC battery backup connections
• Relays: Peak Current < 2A @ 30VDC or 250VAC, SPDT
• Relay Color Coding:  Red & White = Normally Open   Blue & White = Normally Closed
• *Please note: the use of surge protector is required for optimum accuracy and longevity of your device*

Warranty

• 1 year - See CO2Meter Terms and Conditions.
