Trol Master

RJ12 Splitter Hub with cable set

RJ12 Splitter Hub with cable set

Regular price $31.35 USD
Regular price Sale price $31.35 USD
Sale Sold out

The SPH-1 Splitter Hub from TrolMaster makes installation of our controllers as easy as plugging in a phone cable. The SPH-1 hub uses a single RJ12 cable input jack, and provides (8) individual RJ12 output jacks that can be connected to various TrolMaster sensors, adapters and device modules. Using the SPH-1 allows for a "clean" installation and eliminates the need for daisy-chain Y-splitters to be used to interconnect multiple modules or sensors.

The SPH-1 is also a powered hub, meaning that it will boost the signals passing through the SPH-1 allowing more modules, sensors and light adapters to be connected to the TrolMaster controllers. By using the SPH-1, an almost unlimited number of LED / HID lights can be controlled using a single TrolMaster controller. The SPH-1 comes complete with the SPH-1 hub, a 16 foot RJ12 cable and the 12vdc power supply.

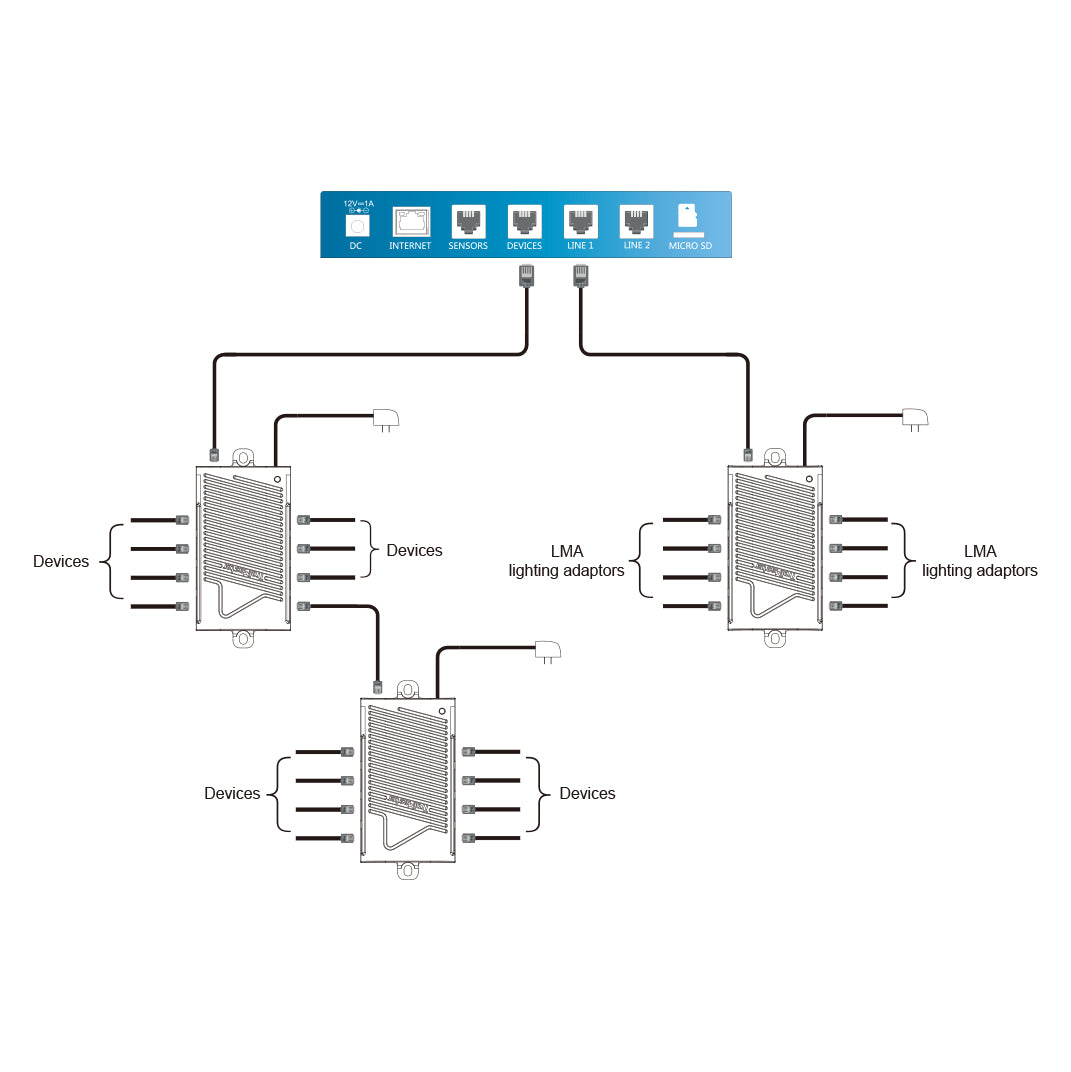

The SPH-1 can be located in a central location with a single RJ12 cable connecting it to the main controller. From the SPH-1 hub, the individual RJ12 jacks can be connected to each of the sensors, device modules, or lighting adapters.

FEATURES

LED indicator

Plug & Play

PACKAGE CONTENTS

  • 1x RJ12 Splitter Hub
  • 1x 12V Power Adapter
  • 1x 4 ft RJ12 Cable



SPECIFICATIONS

Input Voltage:                        12VDC

Maximum Current:                   1A

Working Environment:             Temperature 32-122°F, Humidity≤90%

Packaging Dimensions:         160mm(L) x 85mm(W) x 90mm(H)
