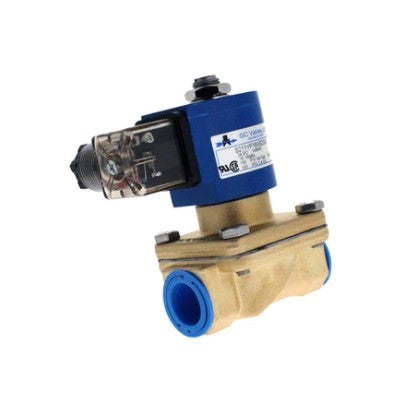

Solenoid Shut Off Valve - 1/2 inch

The SV-0130 Safety Shut Off Valve automatically shuts off the gas supply in the room or at the tank for several of our devices in case of a high-gas alert.

This 1/2 inch shut off valve uses one of the relays on our devices which trips when gas levels exceed the recommended minimums. This provides automatic control in case of a gas leak. It includes a 24V power supply.

The SV-1030 Solenoid Safety Shut Off Valve works with these products:

Specifications

• Pipe Size: 1/2 inches

• Orifice Diameter: 1/8 inches
• Minimum Operating Pressure: 0 psi
• Max Operating Pressure: 140 psi
• Coefficient of volume: 0.30
• Body Material: Brass
• Length: 4.63 inches
• Width: 4.25 inches
• Height: 3.25 inches
• NEMA Rating: 4X
• IP Rating: 65
• Standards: UL, CSA
• UL Approved
• 24VDC
• Watts: 10

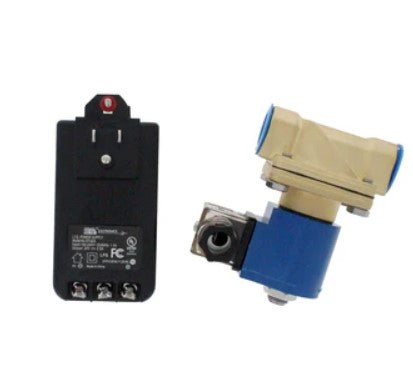

Includes

• 110VAC to 24V Power Supply

Warranty

• 1 year - See CO2Meter Terms and Conditions
