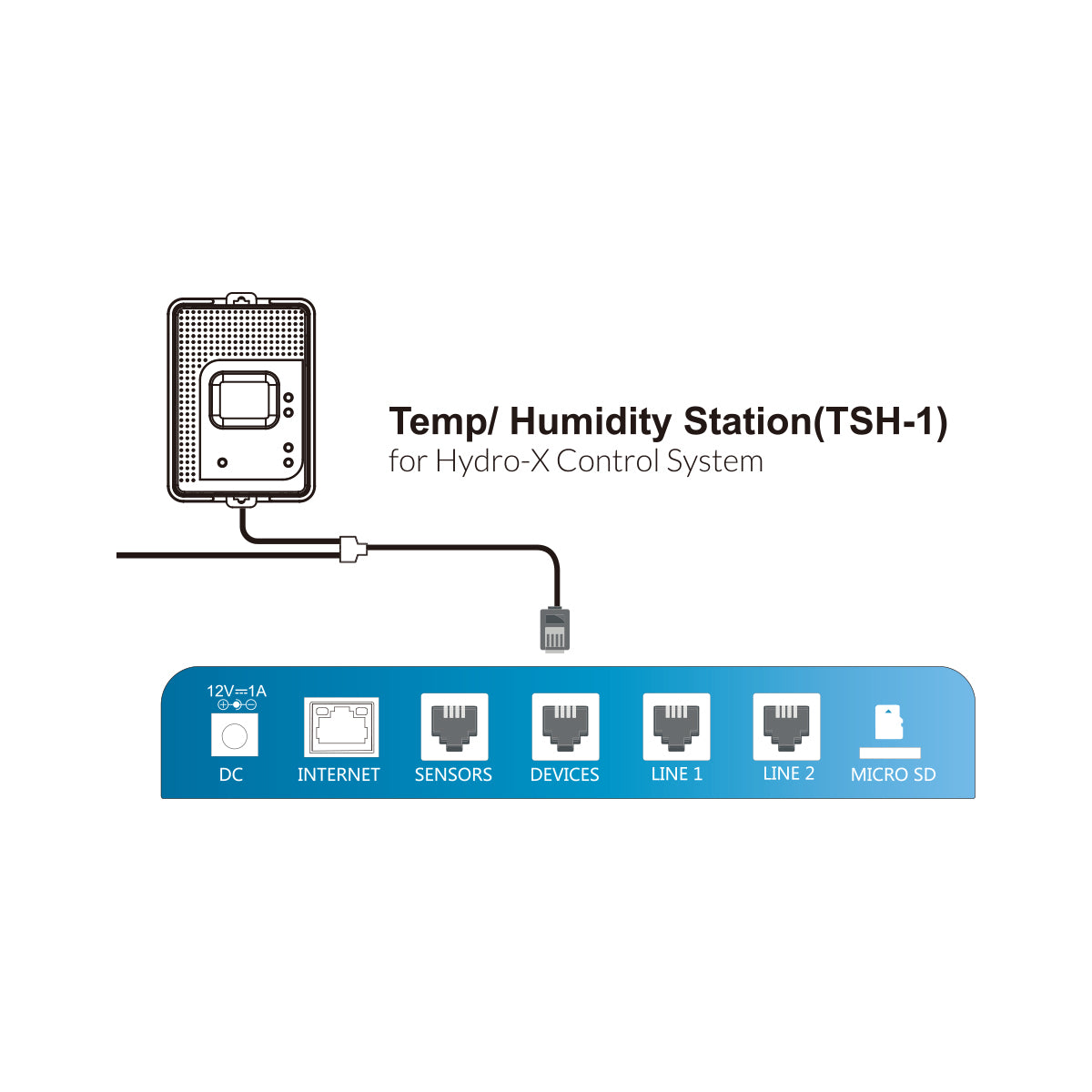

The Trolmaster TSH-1 Temperature / Humidity Station is a 0-10 volt analog output control station that works with the HCS-1, HCS-2 and HCS-3 controllers. The TSH-1 can be configured to control either a temperature or a humidity device that requires a variable 0-10 volt input signal.
The TSH-1 is capable of controlling variable speed fans, vents or any other device that accepts a 0-10 volt input. It features separate day and night “idle” speed settings built-into the TSH-1 as well as separate Day / Night setpoints accessed through the HCS controller.
Features
LCD Display, Easy Operation
Seamless Connection with Hydro-X, Hydro-X Pro and Hydro-X Plus
Micro-SD Slot for Firmware Upgrade
Assignable control of Humidity or Temperature
Plug & Play
Package Content
1 x Temperature/Humidity Station (TSH-1)
1 x 16ft RJ12 Cable
1 x 4ft RJ12 Cable
1 x RJ12 T-Splitter
Specification
Output Voltage: 0-10 V
Maximum Current: 1A
Working Environment: Temperature 32-122°F, Humidity=90%
Packaging Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
